Offshore Special Containers

Standard Offshore Container

Standard Offshore Container

Offshore Special Containers

Product Features

  • ISO 10855 & DNV 2.7-1;
  • Painting or H.D.G as protective manner;
  • 4-leg wire rope lifting sling equips as option;
  • Trans lock for coupling the 10ft into 20ft ISO container to safely load by container ship;
  • Personal Door, window, working bench or cargo shelve,rigging bar,roof lighting etc. as optional items;
  • Other customized sizes are available

AUTHENTICATION

  • DNV 2.7-1

  • LR or DNV

  • CSC (Only for 10FT&20FT)

  • LR

SPECIFICATIONS

model Overall dimensions(mm) dead-weight(kgs) load(kgs) All Up(kgs) Remarks Picture

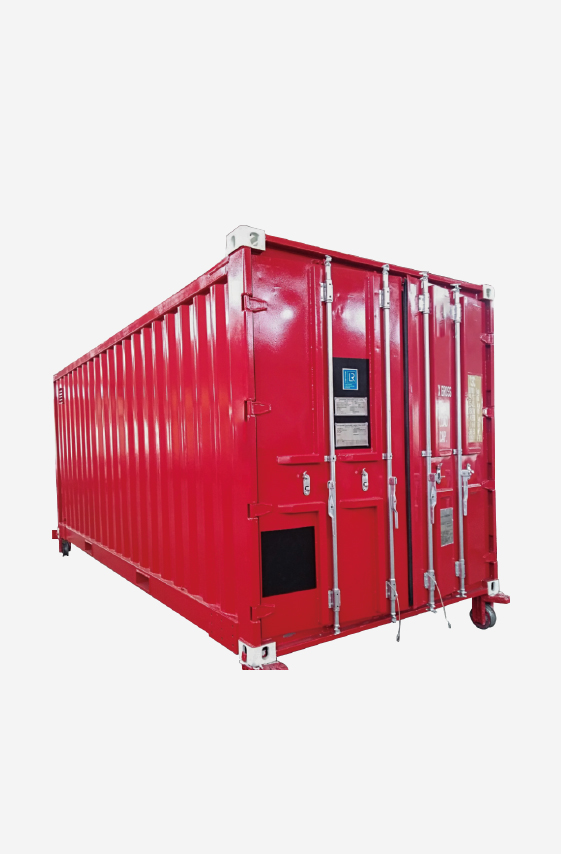

20ft 6058x2438x2591 3540 10000 13540 Flat & corrugate wall view picture

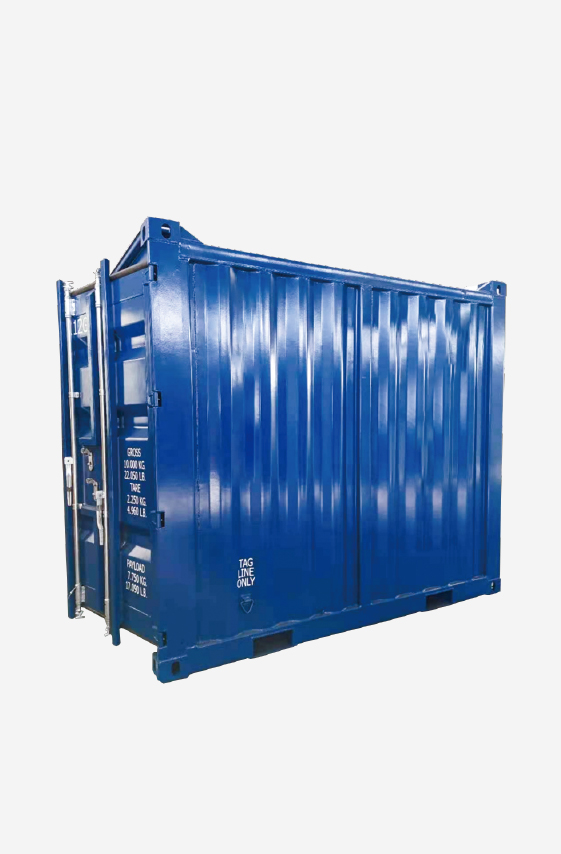

10ft 2991x2438x2591 2250 7750 10000 Flat & corrugate wall view picture

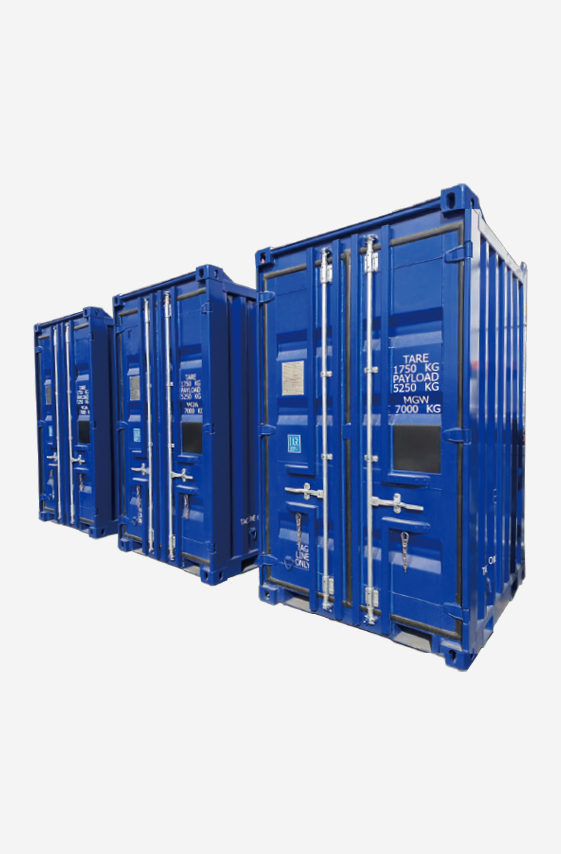

Mini 1880x1600x1600 1750 5250 7000 Flat & corrugate wall view picture
