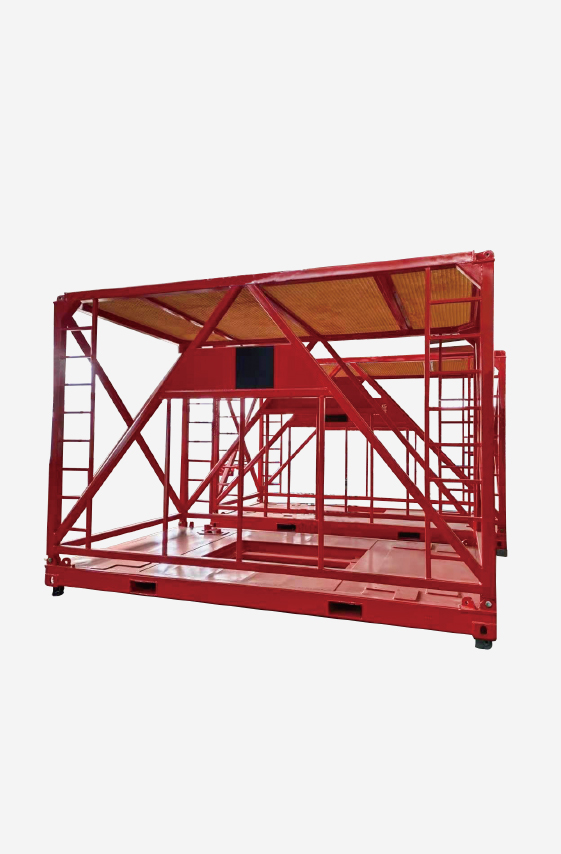

Lifting Frame for Equipment

Offshore Special Containers

Product Features

  • ISO 10855 & DNV 2.7-1/3;
  • Lightweight design but more loading capability;
  • Painting or H.D.G as protective manner;
  • 4-leg wire rope lifting sling equips as option;
  • With ladder, alum or FRP roof as option;
  • Roof Luminous marking;
  • Other customized sizes are available.

AUTHENTICATION

  • DNV 2.7-1

  • DNV 2.7-3

  • LR or DNV

SPECIFICATIONS

model Overall dimensions(mm) dead-weight(kgs) load(kgs) All Up(kgs) Remarks
2.0m Frame 4000x2000x2282 1400 3100 4400 /
3.2m Frame 3200x2750x2826 2300 8000 10300 /
4.8m Frame 4870x2438x2610 3150 9850 13000 /
