Offshore Special Containers

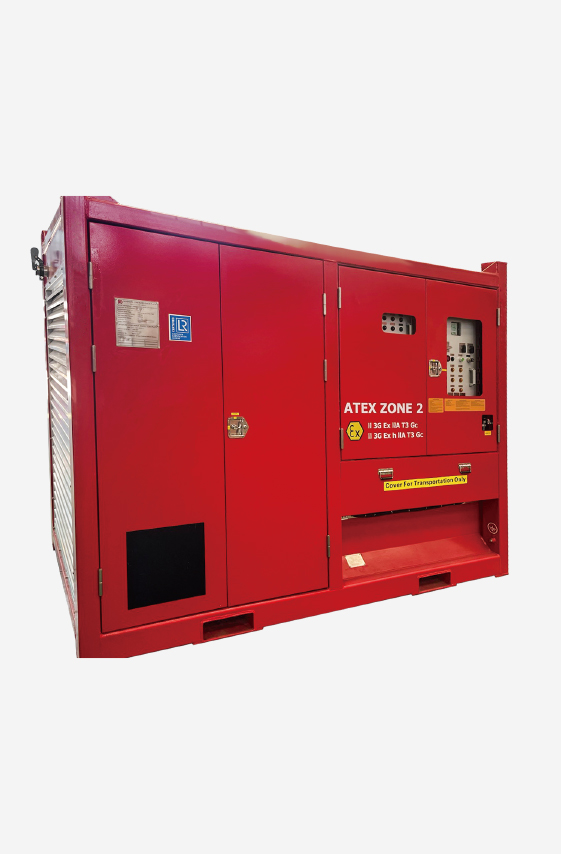

Generator Skid

Generator Skid

Offshore Special Containers

Product Features

  • Excellent heat dissipation and acoustical effect
  • 30KVA-200KVA optional, Cummins, Perkins, CAT engine all available
  • 7*24 Hours Remote Support
  • Spare Parts Continuous Supply
  • 4-leg wire rope lifting sling equips
  • Other customized sizes and configurations are available

AUTHENTICATION

  • DNV2.7-1

  • Lifting Frame

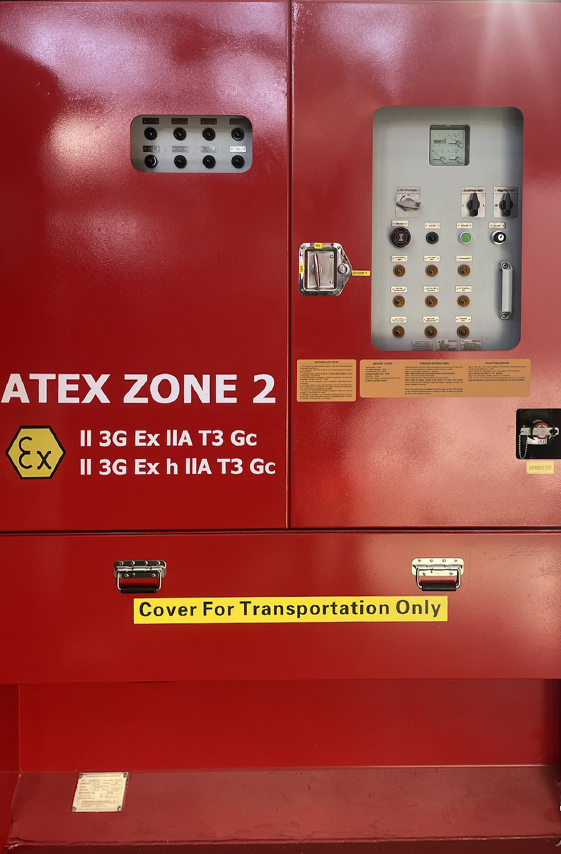

  • ATEX Zone-II Third Party Inspection Certificate (BV/TUV)

SPECIFICATIONS

model Overall dimensions(mm) dead-weight(kgs) load(kgs) All Up(kgs) Remarks Picture
20ft skid 6058x2438x2591 4500 11000 15500 High pressure equipment view picture
4.85m skid 4850x2584x3000 2500 5000 7500 Generator view picture
3.2m skid 3200x1500x2150 1580 3000 4580 Generator view picture
