Blast Resistant Modules

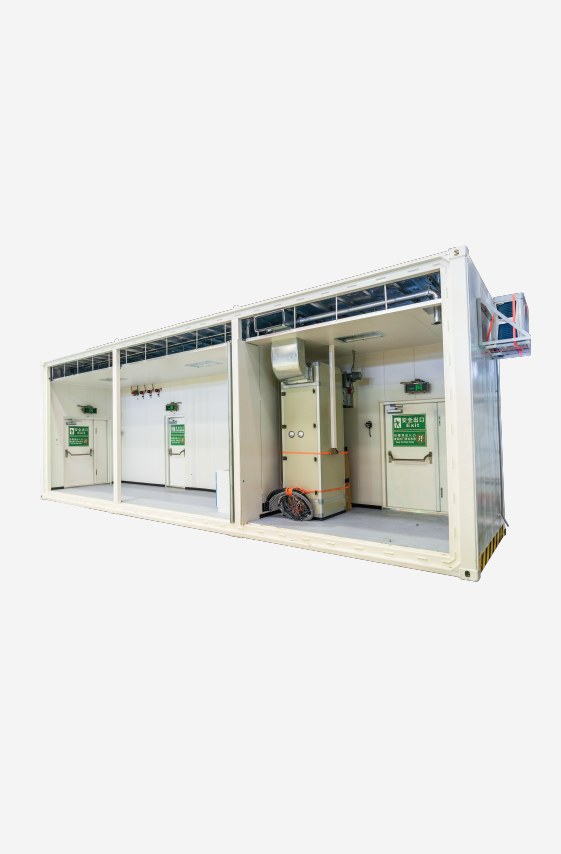

Blast Resistant Modular (BRM)

Blast Resistant Modular (BRM)

Blast Resistant Modules

Product Features

  • Design, manufacture and inspection per API RP 752 and 753
  • Mobile or stationary manner
  • High strength steel, and fire rated wall, door and window
  • Gas detection with alarm
  • Pressurized with airlock
  • Operation panel for on-site controlling
  • Provide operation guidance and 24-hour response customer service
  • Other customized sizes and configurations are available

FEATURES

  • Fresh air chemical filtration cleaning system

  • Outdoor incoming fresh air purification and transfers into central control room or cabinet room, and enable to effectively remove toxic, harmful or corrosive gases in the air).

  • Emergency air breathing shelter system

  • Positive pressure shielding function isolates the external poisonous and harmful gas from invading the room

  • HVAC and fire and gas function interlocking system

  • HVAC system, including Ex-Ac, roof pipe ventilation&exhaust, automatic control and gas detectors

SPECIFICATIONS

model Overall dimensions(mm) dead-weight(kgs) load(kgs) All Up(kgs) Remarks
BRM201040 20000x10000x4000 65000 15000 80000 Multi box combination
BRM251035 25000x10000x3500 85000 15000 100000 Multi box combination
BRM40ftST 12192x2438x2591 10500 9500 20000 Single box
BRM20ftHH 6058x2438x2896 6800 7200 14000 Single box
BRM20ftST 6058x2438x2591 6000 6500 12500 Single box
BRM6030 6000x3000x3000 6500 7500 14000 Single box
