Offshore Cargo Containers

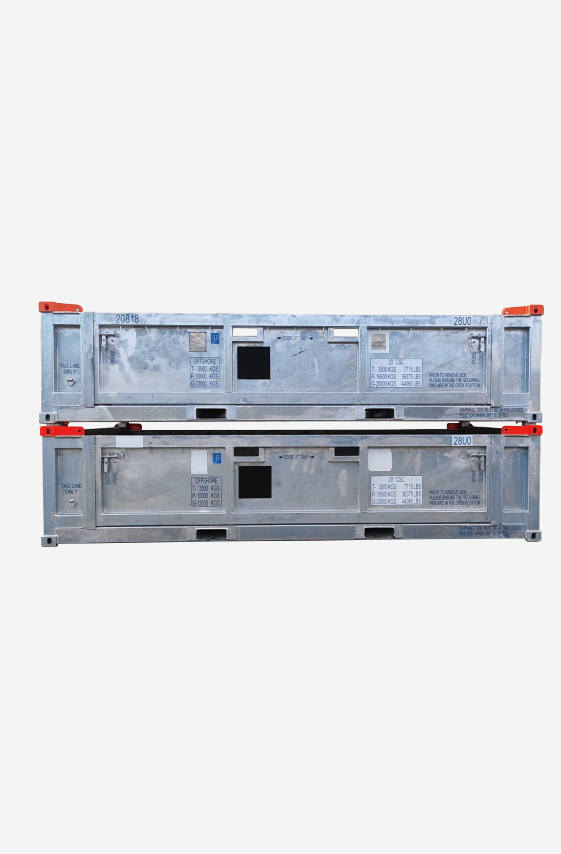

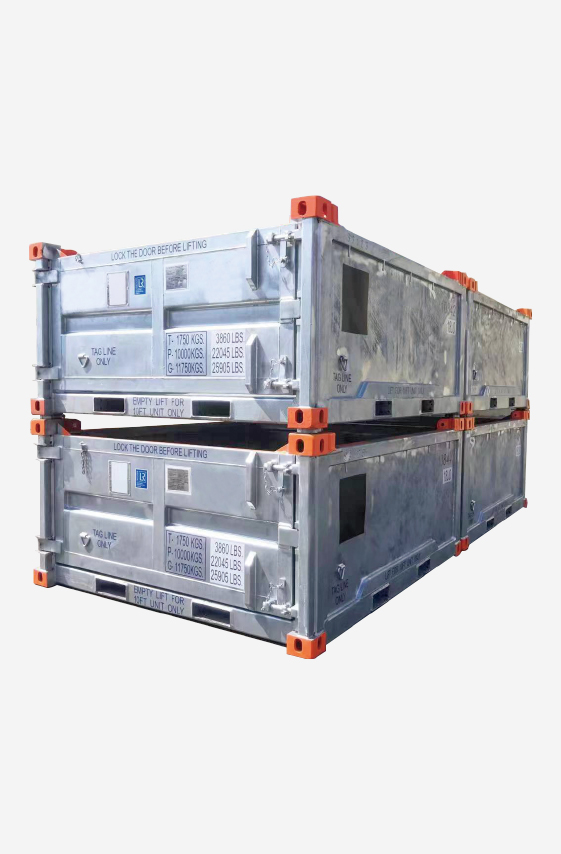

Half Height Offshore Container

Half Height Offshore Container

Offshore Cargo Containers

Product Features

  • ISO 10855 & DNV 2.7-1;
  • Painting or H.D.G as protective manner;
  • 4-leg wire rope lifting sling equips as option;
  • Twist lock&Trans lock for coupling the 10HH and 20HH into 20ft ISO container to safely load by container ship
  • Other customized sizes are available

AUTHENTICATION

  • DNV 2.7-1

  • LR or DNV

  • CSC (Only for 10FT&20FT)

  • LR

SPECIFICATIONS

model Overall dimensions(mm) dead-weight(kgs) load(kgs) All Up(kgs) Remarks
25HH 7620x2438x1346 3700 12000 15700 With removable or swing door
20HH 6058x2438x1432 3500 10000 13500 With removable or swing door
10HH 2991x2438x1280 1750 10000 11750 With swing door
