Offshore Special Containers

Tool Box

Tool Box

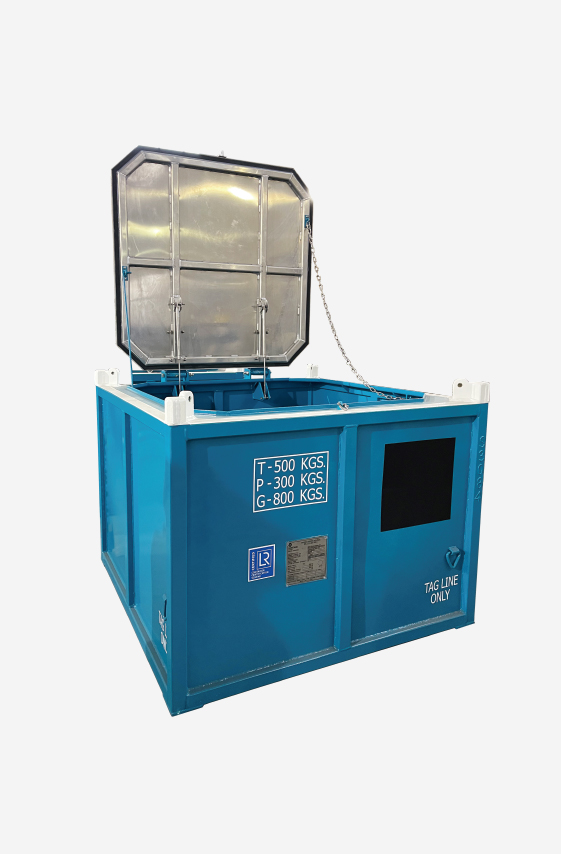

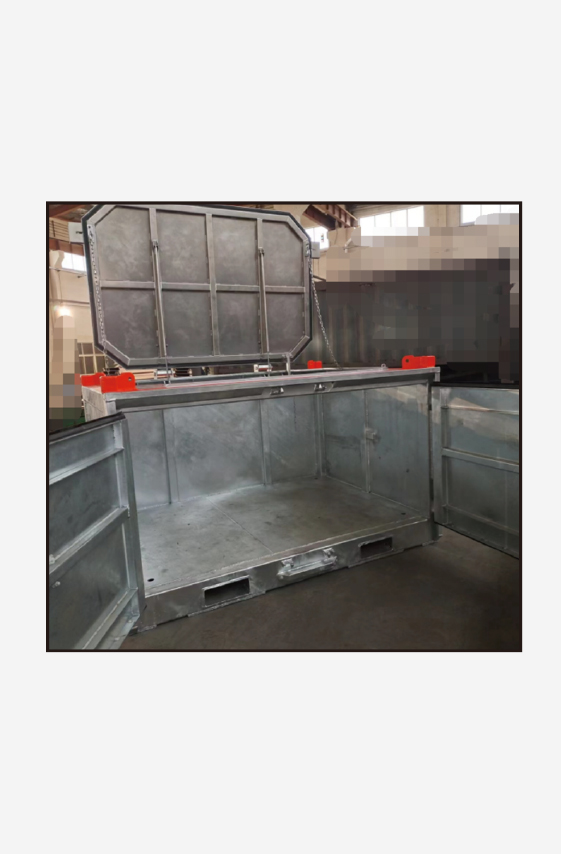

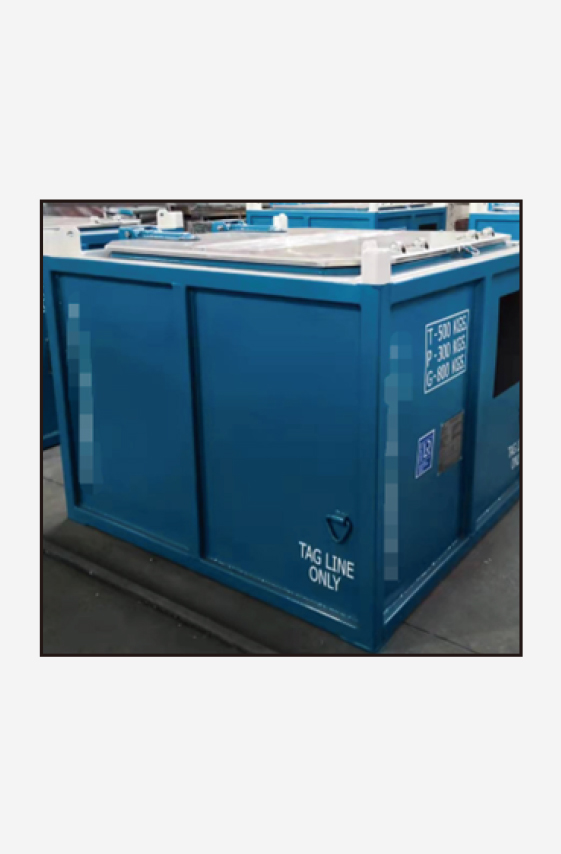

Offshore Special Containers

Product Features

  • ISO 10855 & DNV 2.7-1;
  • Lightweight design but more loading capability;
  • Painting or H.D.G as protective manner;
  • Roof Luminous marking;
  • Other customized sizes are available
  • 4-leg wire rope lifting sling equips, gas raising system as option;

AUTHENTICATION

  • DNV 2.7-1

  • LR or DNV

SPECIFICATIONS

model Overall dimensions(mm) dead-weight(kgs) load(kgs) All Up(kgs) Remarks
8ft box 2438x1830x1524 1380 4920 6300 With Alum lid
6ft box 1829x915x855 510 3570 4080 With Alum lid
5ft box 1500x1500x1222 500 300 800 With Alum lid
